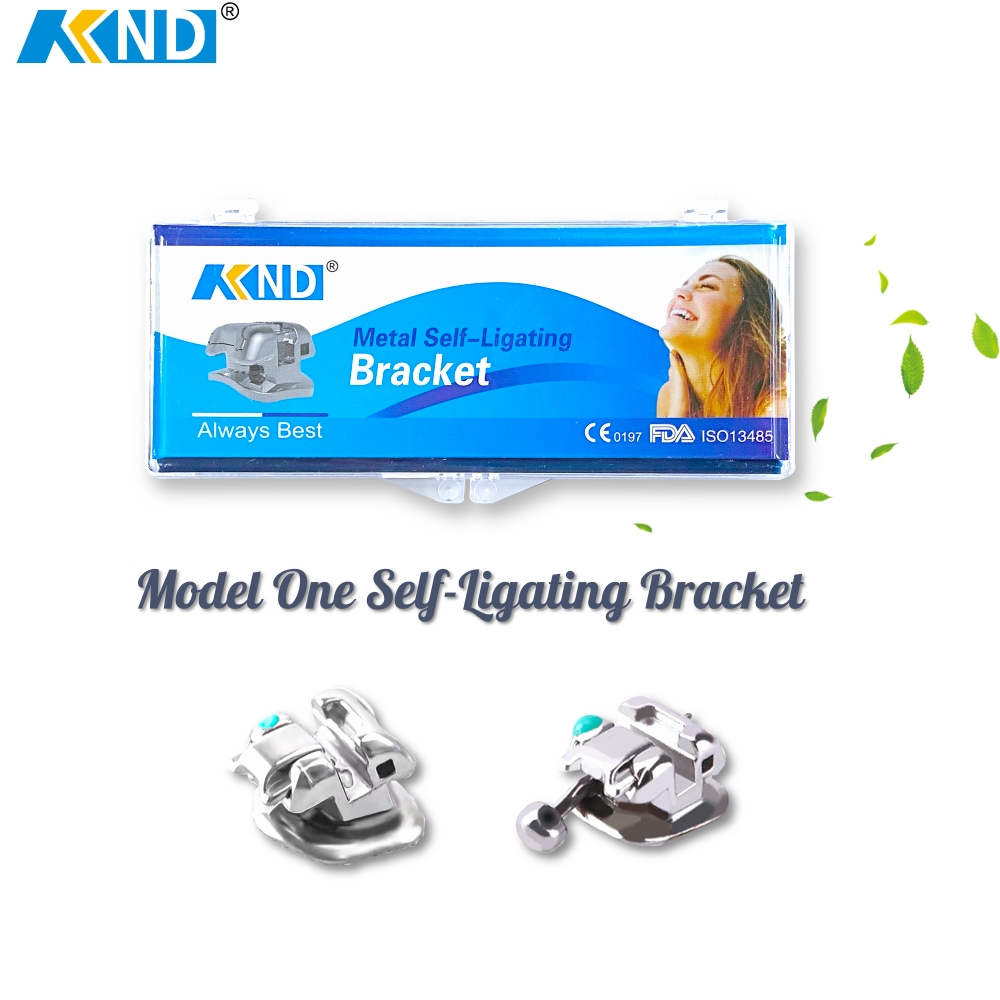

Model One Metal Self Ligating Brackets

Model One Metal Self Ligating Brackets

GET A QUOTE

Product Description

Product Specification
Product NameKND Model One Metal Self Ligating Brackets
SizeMini
Slot0.022"
SystemRoth/MBT

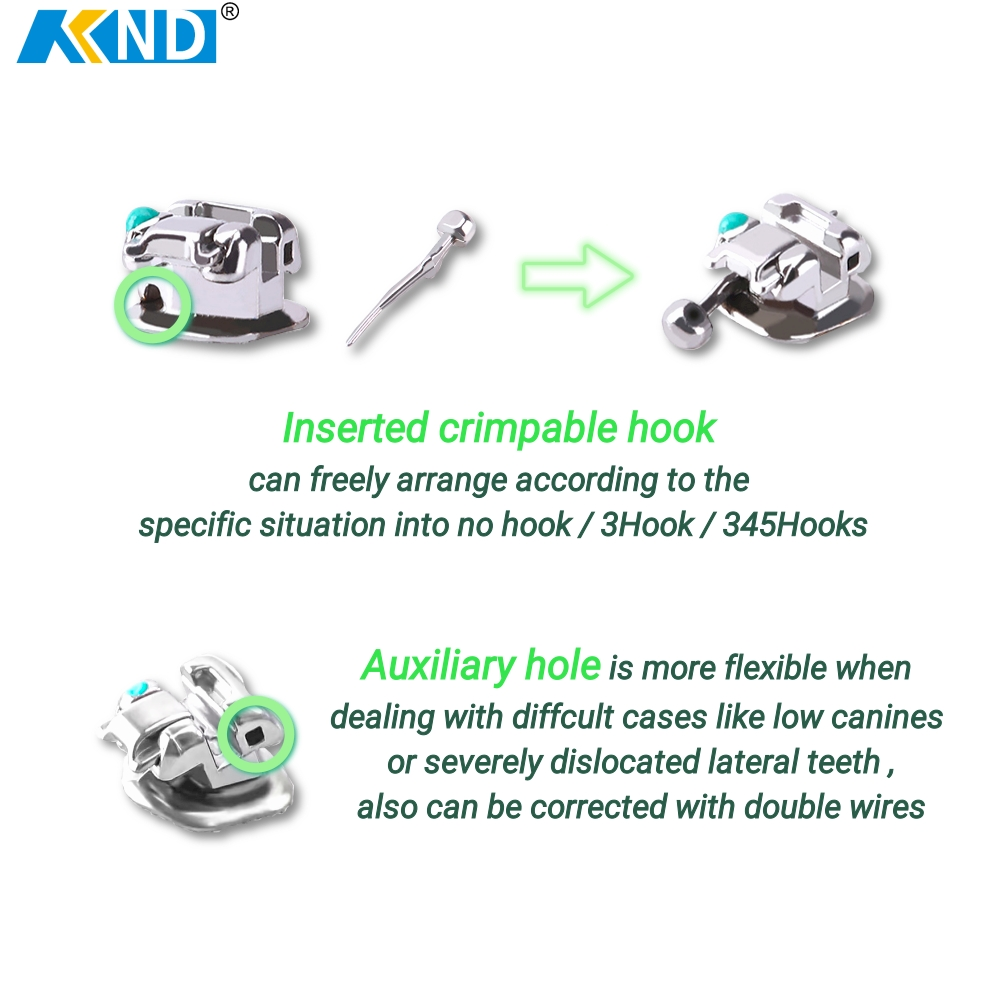

HooksInserted Hooks

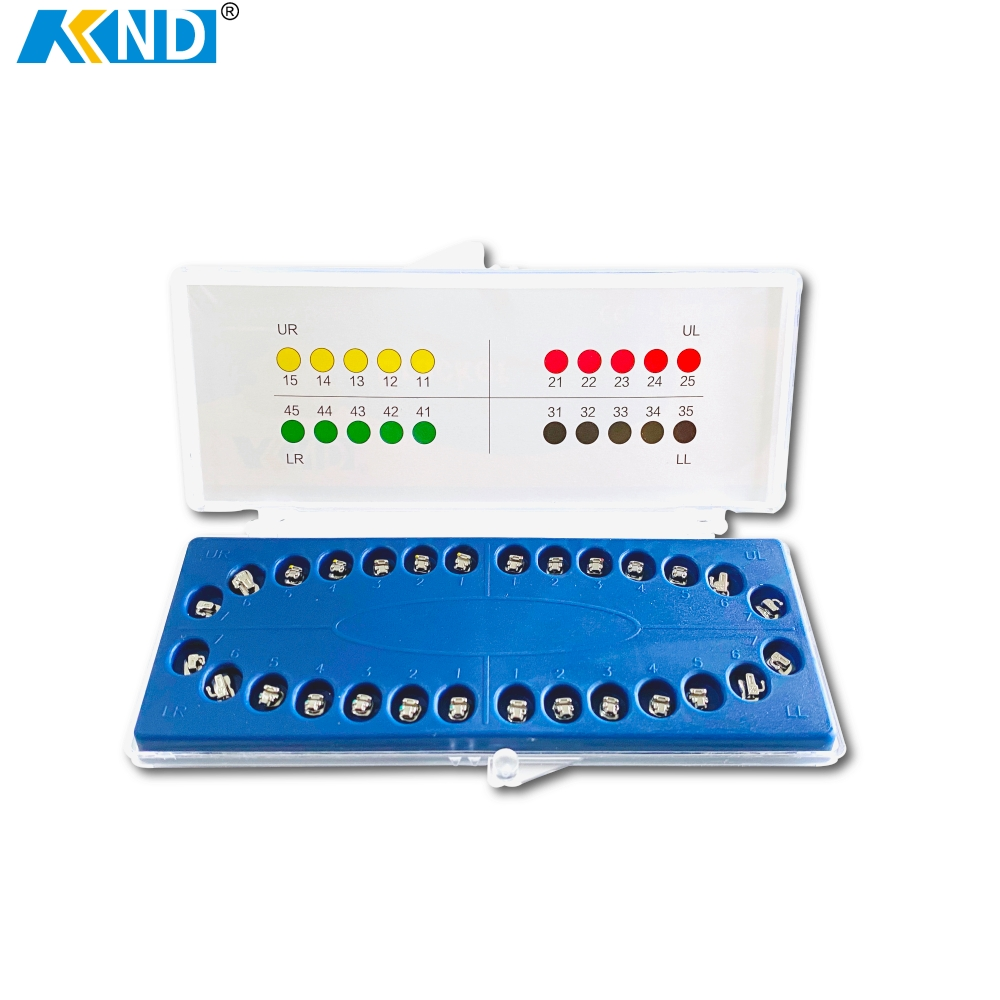

Package28pcs/box+a tool (7-7)
MaterialMedical Stainless Steel
PriceDepend on order quantity


Product Features

1. Vertical and horizontal auxiliary slots for versatility with different accessories. Available multiple torque choices help better torque control of the anterior teeth.

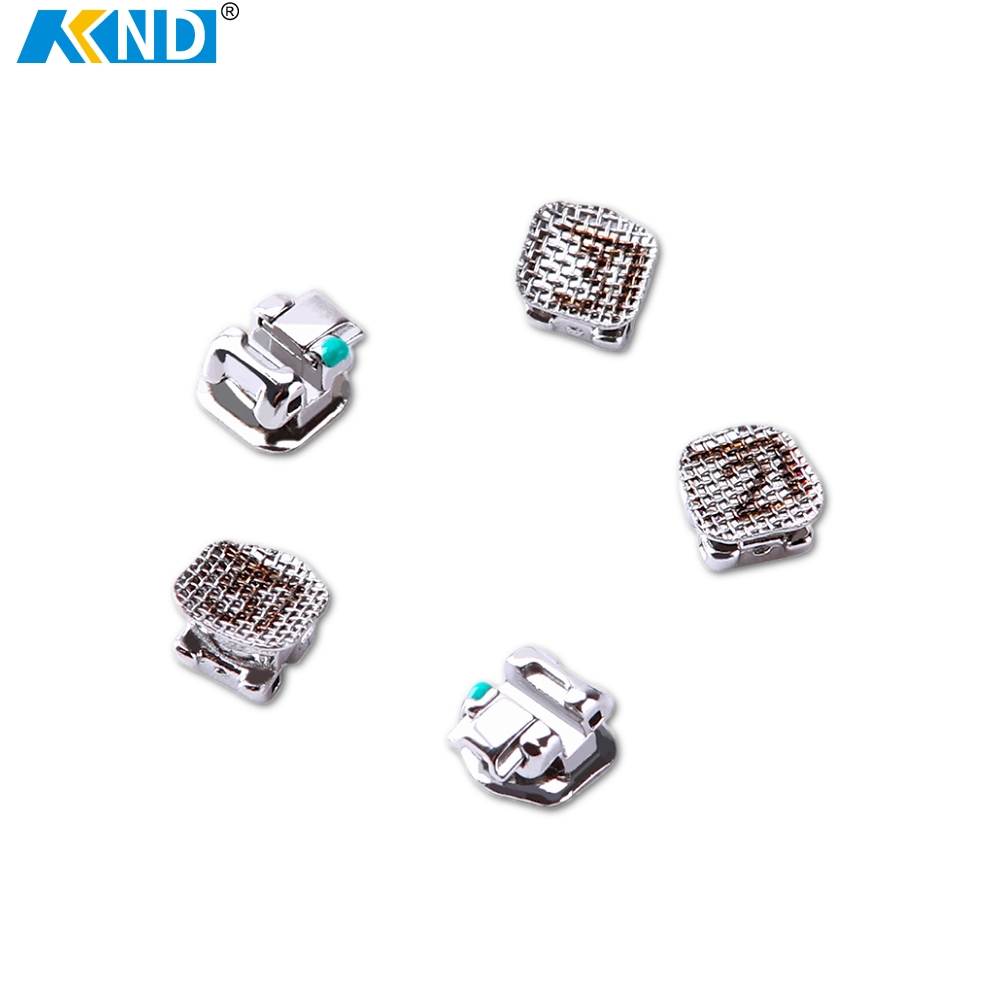

2. Mesh base marked with tooth number, 80-gauge mesh base offers outstanding adaptation and bonding strength.


3. Lower profile, compact design and smooth surface for patient comfortable


4. Self-ligating design resulting in more convenient and less time for doctors and patients.


5. Maxillary slide opens occlusally, mandibular slide gingivally.


6. Patented locking system, works smoothly, and easy for wire replacement.

Roth System Data
MaxillaryU1U2U3U4U5
Torque+12°+8°-2°-7°-7°
Tip+5°+9°+10°0°0°
MandibularL1L2L3L4L5
Torque-1°-1°-11°-17°-22°
Tip0°0°+7°0°0°
MBT System Data
MaxillaryU1U2U3U4U5
Torque+17°+10°-7°-7°-7°
Tip+4°+8°+8°0°0°
MandibularL1L2L3L4L5
Torque-6°-6°-6°-12°-17°
Tip0°0°+3°0°0°
STD Torque Data
MaxillaryU1U2U3U4U5
Torque+15°+6°+7°-11°-11°
Tip+5°+9°+5°+2°+2°
MandibularL1L2L3L4L5
Torque-3°-3°+7°-12°-17°
Tip+2°+4°+5°+4°+4°
